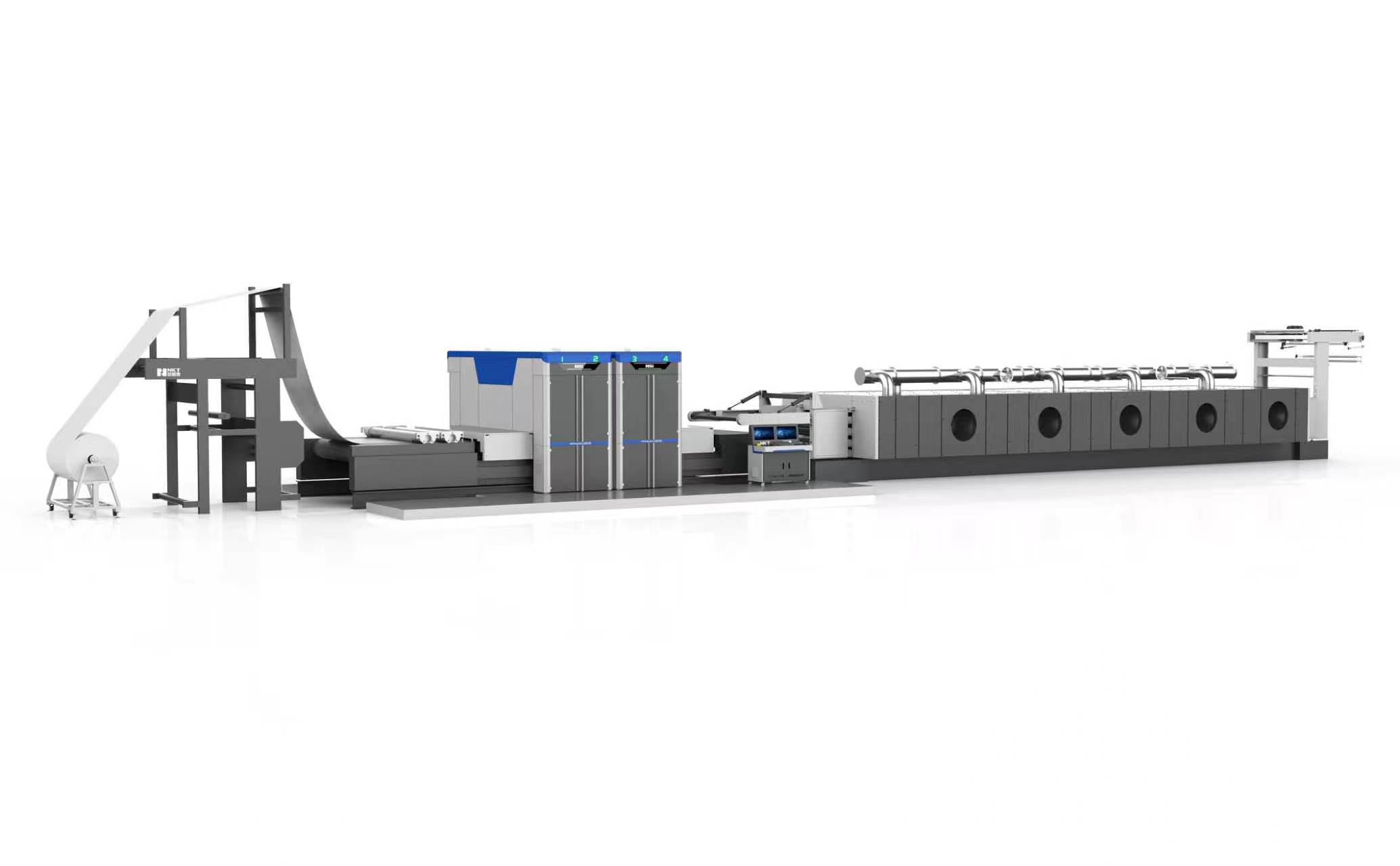

Single Pass
1.High-Precision Industrial Printhead: This printhead is designed for industrial applications, ensuring exceptional accuracy in printing.
2.Variable Ink Dot Functionality: It features adjustable ink dot sizes, allowing for greater versatility and detail in printed designs.
3. Integrated Post-Processing Capabilities: This system includes built-in features for post-processing, enhancing the final print quality and efficiency.
4.Multi-Module Simultaneous Printing: The printhead can operate multiple modules at once, making it ideal for high-volume printing needs.
5.Optimal Choice for Mass Printing: With its capabilities, it is the preferred choice for large-scale fabric printing.
6. Typical Industrial Printhead Precision: Maintains industry standards for precision, delivering consistent results across various applications.
7.Suitable for Various Fabrics: It is compatible with a wide range of materials, including cotton, linen, and synthetic fibers.
Model |
F4x4-1836 |
|
Print Head model |
Kyocera EX600 |
|
Max printing width |
1836mm or customized |
|
Max Quantity of Printing Channel |
16 Channels,4 sets color bar |
|
Max Quantity of print Heads |
12 channels 180pcs |
16channels 240pcs |
Printing Precision |
1200DPI |
|
Max printing Speed |
4500㎡/h |
|
Ink type Supported |
Reactive,Pigment,High Temperature dispersion |
|
Whole Line Dimension |
38000*7000*4700mm |
